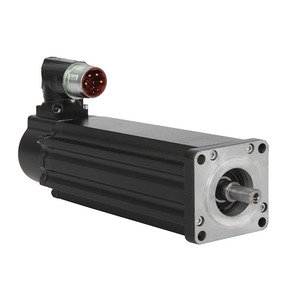

VPL-B1003F-PJ14AS
VPL-B1003F-PJ14AS
*Image shown is a representation only. Actual product may vary
Specifications
- Part No. VPL-B1003F-PJ14AS
- Category Servo Products
- Category Servo Motor
- Weight 5.17 kgs
- Connector Single SpeedTec DIN Connector,
- Brake 24V DC Holding Brake,
- Rated Speed 4500 rpm,
- Frame Size (BCD) 100 mm,
- Series Type Low Inertia,
- Feedback 18-Bit Absolute Multi-Turn Digital Encoder (Hiperface DSL Encoder),
- Magnet Stack Length 3 Magnet Stack,
- Shaft Key Shaft Key,
- Voltage Class 400V,
- Mounting Flange IEC Metric, Free Mounting Holes (Type FF),
- Factory Options Shaft Seal
Product Information
Description:
-
VPLB1003FPJ14AS
-
SERVO MOTOR
-
KINETIX
-
LOW INERTIA
-
400V
-
100 MM
-
3 MAGNET STACK
-
4500 RPM
-
18-BIT ABSOLUTE MULTI-TURN DIGITAL ENCODER (HIPERFACE DSL ENCODER)
-
SHAFT KEY
-
SINGLE SPEEDTEC DIN CONNECTOR
-
24V DC HOLDING BRAKE
-
IEC METRIC
-
FREE MOUNTING HOLES (TYPE FF)
-
SHAFT
-
FACTORY WARRANTY DOES NOT APPLY. RADWELL 2-YEAR WARRANTY INCLUDED
