H23240002254Q
£534.31/ea
Price with VAT:
£641.17/ea
H23240002254Q

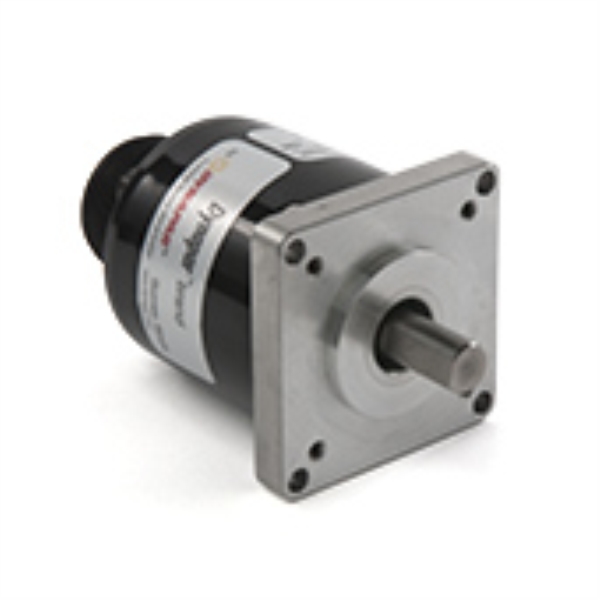

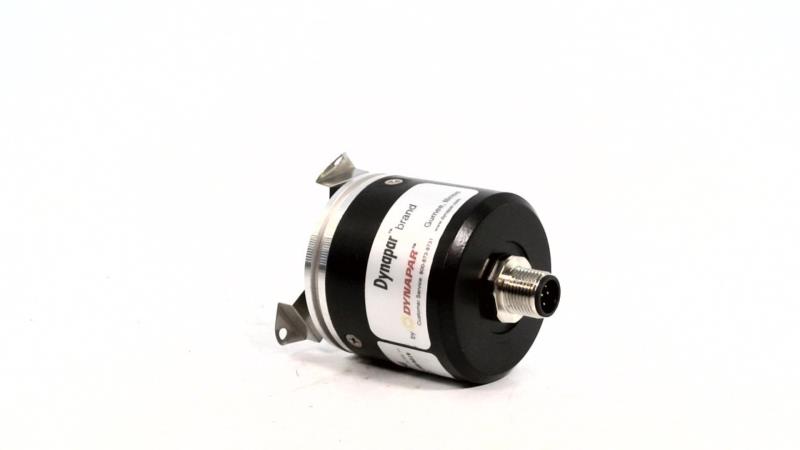

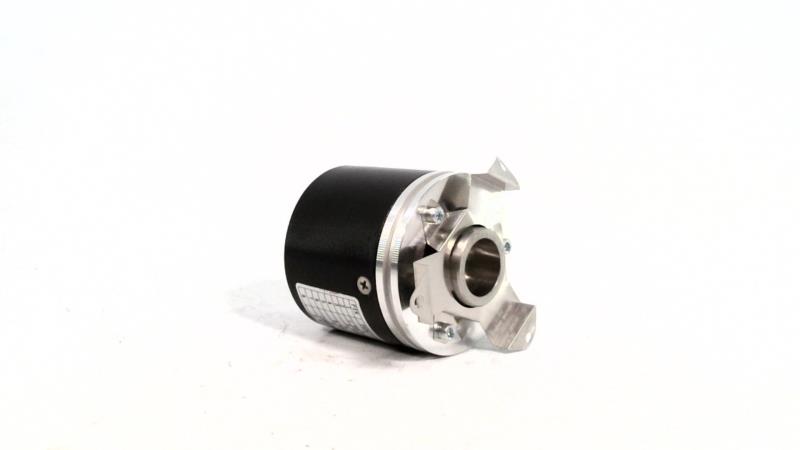

*Image shown is a representation only. Actual product may vary
Specifications
- Part No. H23240002254Q
- Category Sensors & Switches
- Category Encoder/Resolver
- Weight 0.25 kgs
- Face Mount #4-40 @ 1.50" BC MOUNT
- Pulses/Rev 2400 PPR
- Output 5-26V IN, 5-26V LINE DRIVER OUT
- Shaft 5/8" HUB SHAFT
- Termination 8 PIN M12 CONN END MOUNT
- Model BIDIRECTIONAL W/ INDEX
- Housing SERVO MOUNT
Product Information
Description:
-
H23240002254Q
-
INCREMENTAL ENCODER
-
SERIES H20
-
SHAFTED
-
BIDIRECTIONAL W/ INDEX
-
2400 PPR
-
SERVO MOUNT
-
5/8" HUB SHAFT
-
#4-40 @ 1.50" BC MOUNT
-
5-26V IN
-
5-26V LINE DRIVER OUT
-
8 PIN M12 CONN END MOUNT
-
FACTORY WARRANTY MAY NOT APPLY. RADWELL 2-YEAR WARRANTY INCLUDED
