02560394-000
£393.04/ea
Price with VAT:
£471.65/ea
02560394-000
*Image shown is a representation only. Actual product may vary
Specifications
- Part No. 02560394-000
- Category Sensors & Switches
- Category Current Sensor
- Weight 0.11 kgs
Product Information
Description:
-
02560394000
-

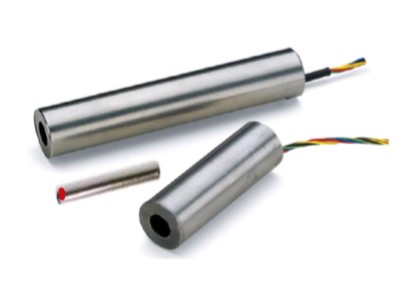

LINEAR VARIABLE DIFFERENTIAL TRANSFORMER (LVDT)
-
500HR SERIES
-
+/- 0.5 (+/-12.7) STROKE RANGE
-
350 MV/V OUTPUT AT STROKE ENDS
-
460 OHMS INPUT(PRIMARY)
-
320 OHMS OUTPUT(SECONDARY)
-
INPUT VOLTAGE 3VRMS
-
INPUT FREQ 400 HZ TO 5 KHZ
-
TEST FREQ 2.5 KHZ
-
FACTORY WARRANTY MAY NOT APPLY. RADWELL 2-YEAR WARRANTY INCLUDED
Also Known As
Alternate Part No:
- SCHAEVITZ 500HR
Radwell is not an authorised distributor, reseller or representative of the products featured on this website. All product names, trademarks, brands and logos used on this site are the property of their respective owners. The depiction, description or sale of products featuring these names, trademarks, brands and logos is for identification purposes only and is not intended to indicate any affiliation with or authorisation by any rights holder.
Last Value Update: 12/07/2019
